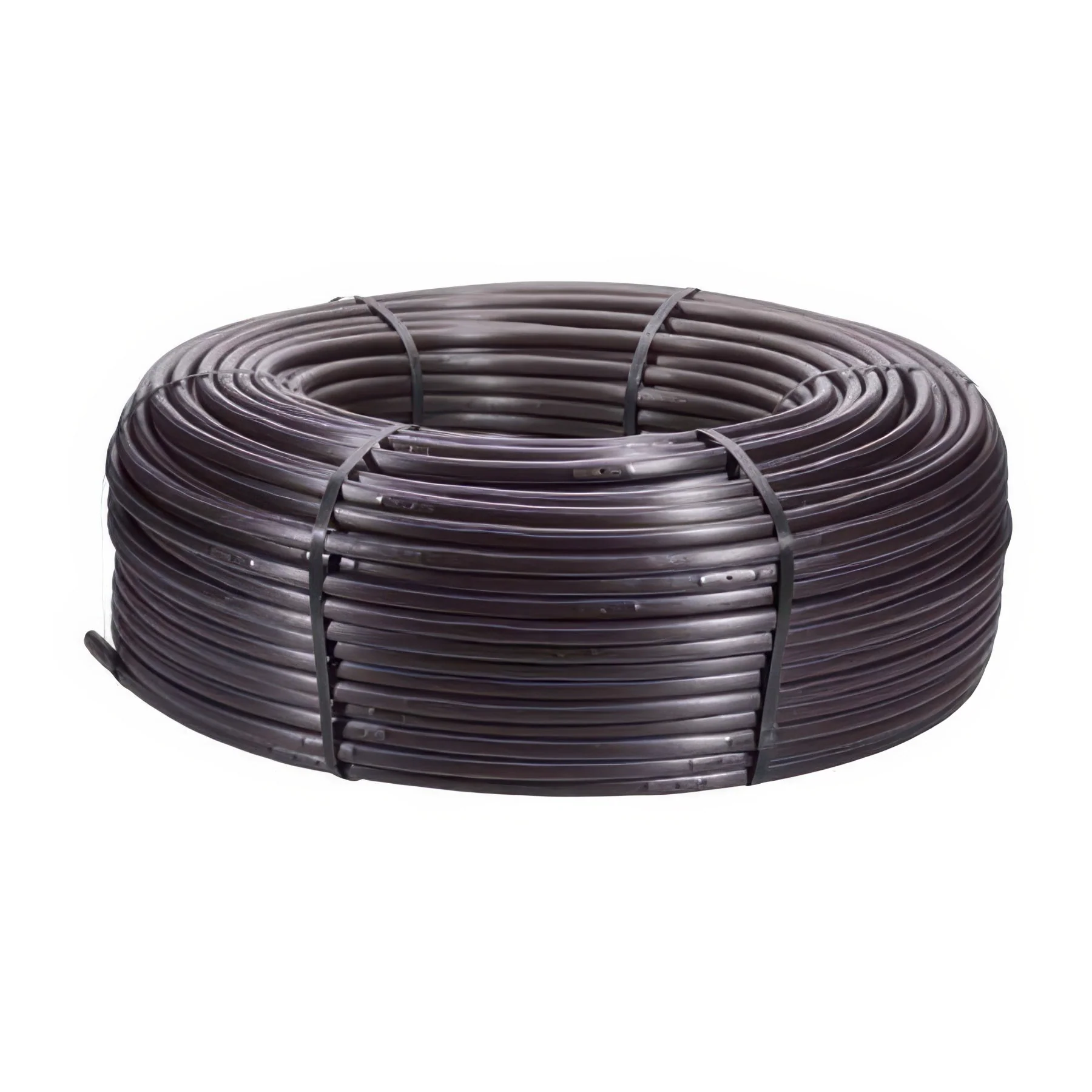

Netafim Techline HCVXR-RWP Dripline .53 GPH Flow, 12 Inch Emitter Spacing - 500 Foot Coil

Techline™ HCVXR-RW and RWP

Designed for reclaimed water use, Techline™ HCVXR-RW and RWP combine superior root intrusion protection, an anti-siphon feature and high check valve. All the same features as Techline™ HCVXR dripline and easy to identify purple stripes designating its use with reclaimed (recycled) water. Techline™ HCVXR-RWP is a solid purple color.

HCVXR-RWP Tubing is Purple, HCVXR means High Check Valve

---

Why Techline™ HCVXR-RW and RWP?

• Long Lasting Protection Throughout the Life Of The Dripline
  Cupron copper oxide will not wash off, wear off and does not leach out of the emitter providing superior root intrusion resistance.
• Patented Emitter Design With Physical Root Barrier
  Offset flow path, extra large bath area and raised outlet prevent root intrusion.
• High Check Valve In Each Emitter
  The high check valve is great on slopes because it holds back 8.5’ of water (elevation change) keeping the dripline charged for even distribution of water with no low emitter drainage.

---

Product Advantages

• Emitter With Anti-Siphon Feature
  Emitter outlet is sealed at system shutdown blocking debris from entering the dripline after irrigation.
• Pressure Compensating With Continuous Self-Flushing
  Delivers precise, equal amounts of water over wide pressure range while continuously flushing debris throughout operation.
• New Color For Easy Identification
  The dripline has a new color for easy identification as Techline HCVXR-RW.
• Four New Emitter Flow Rates
  Achieve maximum design flexibility with four new emitter flow rates – the most options offered in the industry.

---

Applications

• Reclaimed (recycled) water use
• For irrigation with non-potable reclaimed water and soil loading

---

Specifications

• Emitter flows: 0.33, 0.53, 0.77, 1.16 GPH
• Emitter spacings: 12” and 18”
• Pressure compensation range: 21.8 to 58 psi
• High Check Valve: holds back 8.5’ of water
• Bending radius: 7”
• Maximum recommended system pressure: 58 psi
• Minimum pressure required: 21.8 psi
• Tubing diameter: 0.66” OD; 0.56” ID, 0.050” wall
• HCVXR-RW coil lengths: 500’ and 1,000’
• HCVXR-RWP coil lengths: 500′
• Recommended minimum filtration: 120 mesh
• Diaphragm: molded silicon
• ISO 9261 Standard Compliance
